Name: 300kg/H PVC Plastic Extruder Air Cooling Single Screw PVC Granule Making Machine
Brand: suzhou ACC machine Co.,Ltd
SKU: ACC-65C
Price: 29000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ACC

Certification: CE

Model Number: ACC-65C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 29000$ per set

Packaging Details: standard export package

Delivery Time: 5 work days

Payment Terms: T/T

Supply Ability: 30-35 work days per set

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                    300kg/h PVC Plastic Extruder, Air Cooling PVC Pelletizing Machine, Single Screw PVC Granule Making Machine


Dimension:	2500mm1200mm1800mm	Main Motor Power:	37KW
Weight:	1500kg	Cooling Method:	Air Cooling
Extruder Type:	Single Screw	Material:	PVC
Voltage:	380V	Warranty:	1 Year
Control System:	PLC	Heating Zones:	5
Frequency:	50Hz	Max Output:	300kg/h

Dimension:	2500mm1200mm1800mm
Main Motor Power:	37KW
Weight:	1500kg
Cooling Method:	Air Cooling
Extruder Type:	Single Screw
Material:	PVC
Voltage:	380V
Warranty:	1 Year
Control System:	PLC
Heating Zones:	5
Frequency:	50Hz
Max Output:	300kg/h

300kg/H PVC Plastic Extruder Air Cooling Single Screw PVC Granule Making Machine

Products Description

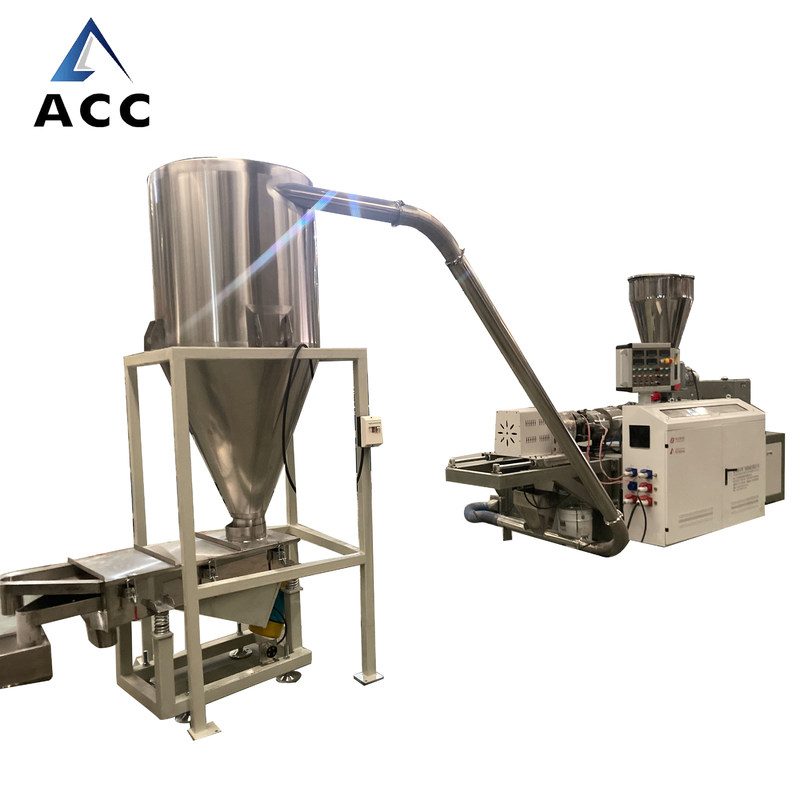

Raw material pvc plastic granule making machine

This pelletizing machine is composed by SJSZ series conical twin-screw extruder and correspondingly pelletizing auxiliary equipment; It is suitable for pelletizing PVC, WPC material. The pellets produced by this line are even, solid, elegance.

The pelletizing auxiliary equipment includes die face cutter, air transferring unit, vibration separating and cooling unit,with features of high automation and high production efficiency.


Machine Model and Parameters

			Extruder Model

			SJSZ-51

			SJSZ-55

			SJSZ-65

			SJSZ-80

			SJSZ-92

			Screw Dia.(mm)

			Φ51/105

			Φ55/110

			Φ65/132

			Φ80/156

			Φ92/188

			Main Motor(kw)

			18.5

			22

			37

			55

			90

			Cutting motor(kw)

			1.1

			1.1

			1.5

			1.5

			2.2

			Granules size(mm)

			3

			3

			3

			3

			3

			Output(kg/h)

			80-100

			100-150

			150-250

			250-380

			380-700
